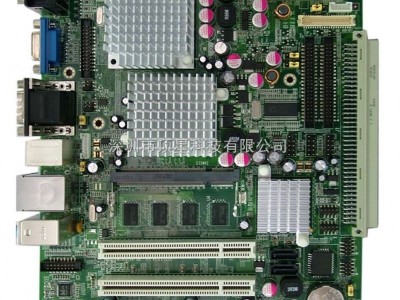

HS-525TD

Form Factor

Mini-ITX motherboard, 170mm×170mm;

CPU

In AtomTM Processor D525;

Chipset

In NM10 low power assumption chipset;

Memory

1*204 Pin DDR3 1066/1333MHz memory, capacity up to 4G;

Video Interface

With inner graphics acceleration core of In CPU, perfectly support 1*VGA, 1*24bit LVDS display interface, support dual-display mode(Copy Mode & Expansion Mode)

Hard Disk

2*SATA ports

Ethernet Interface

2*LAN (100/1000Mbps), support PXE boot, support Wake-On-LAN;

Multi-I/O ports

Integrated with high-performance supper I/O chip, 6*COM (RS232/422/485 optional), 7*USB 2.0;

Realtek ALC662, two-layer Mic-in、Line-out，1*LPT，1*PS/2;

Watchdog

With supper I/O support hardware-monitoring function of temperature, working state of CPU, fan.etc. 1~65535Sec/Min, reset function;

Expansion Bus Interface

1*PCI，1*Mini PCI-E;

Environment

Power:  DC 12V;

Working Temperature: 0℃-60℃

Humidity: 5%-90%, non-condensing;

Operation System

 Windows XP, WinCE, XPE, Win7, Linux.
