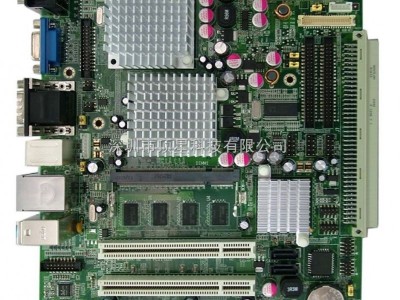

SC-M7068v

Dimension

ODM motherboard, dimension: 204mm×180mm

Processor

In® Atom D525/D425 processors

System chipset

In Pineview, ICH8M chipsets solution

System memory

1*204 Pin SO-DIMM DDR3 667/800MHz memory, expandable up to 4G.

Display

Through the In CPU built-in graphic image accelerate core, perfect supports VGA, 24 bit LVDS mainstream display interface, supports double show mode (replication mode expansion mode)

Storage

2*SATA ports, 2*IDE

SC-M7068

SC-M7068

Ethernet

1*10/100/1000Mbps adaptive network port, supports PXE boot, supports remote wake-up function

I/O

Integrated high-performance Supper I/O chip, supports 8 * COM, 8*USB 2.0, Realtek ALC662/661 achieve 1*Mic-in, 1*Line-out, 1*LPT, 1*PS / 2

H/W monitor

CPU Temperature , Fan speed, system temperature

1~65536s/m reset

Expansion

3*PCI

Environment

Power Supply: 20 Pin ATX/AT, DC12V power supply
Operating temperature: 0 ~ 45 ℃
Relative humidity: 5% to 90%, non-condensing

Operating system

Windows XP、WinCE、XPE、Win7、Linux
